BRITEQ LD-1024WALL+

1024 (2x 512) Channel DMX interface for fixed architectural purposes

Can easily be mounted on walls of any surface.

All the connections are on inside the back panel so no wires are visible.

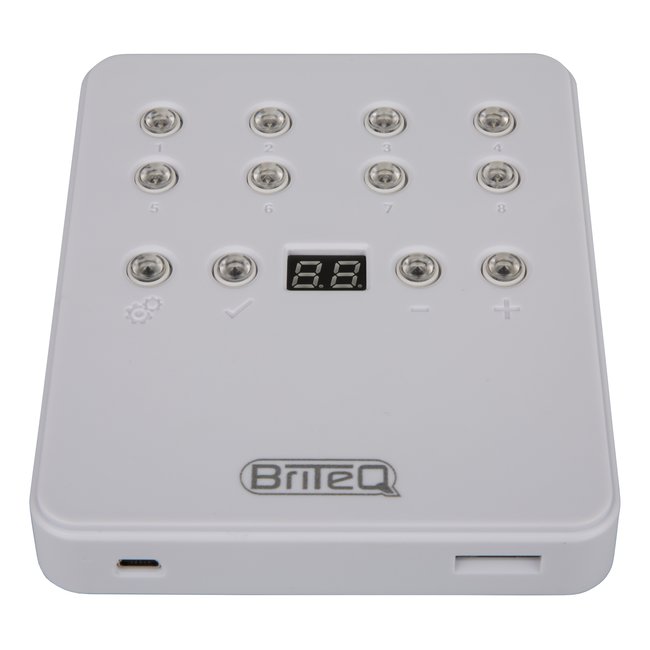

Nice white finish with blue display and blue led buttons for the activated functions

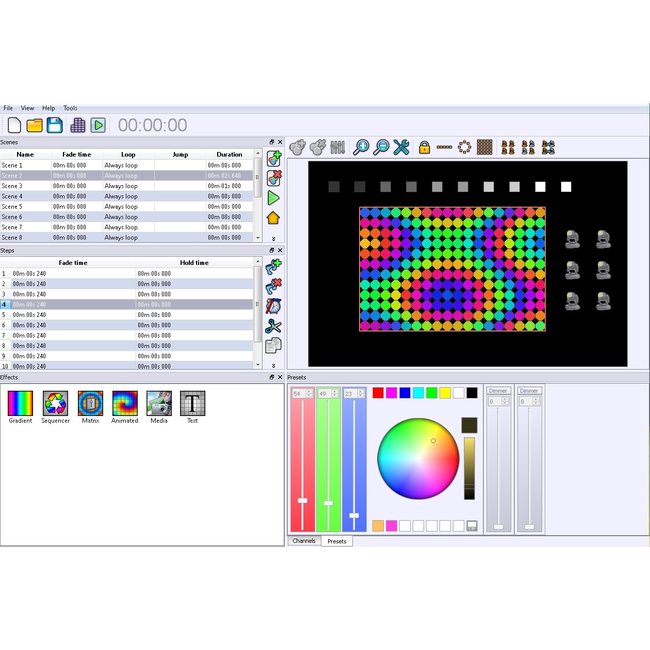

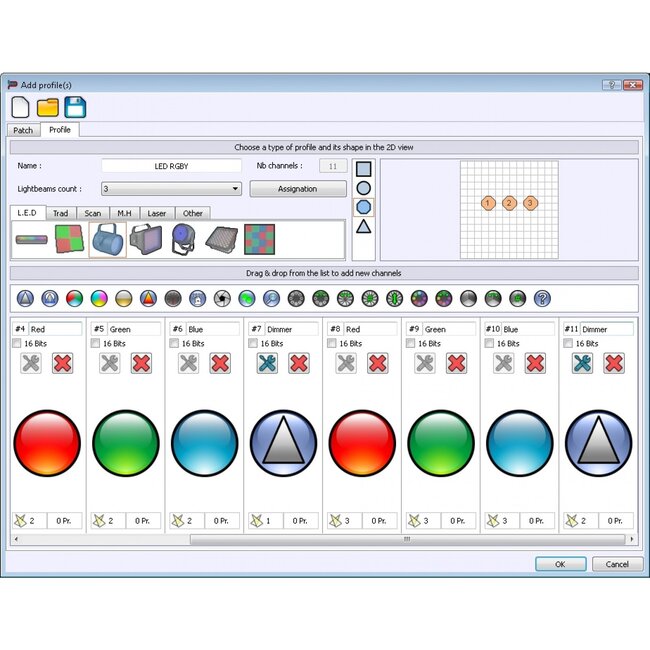

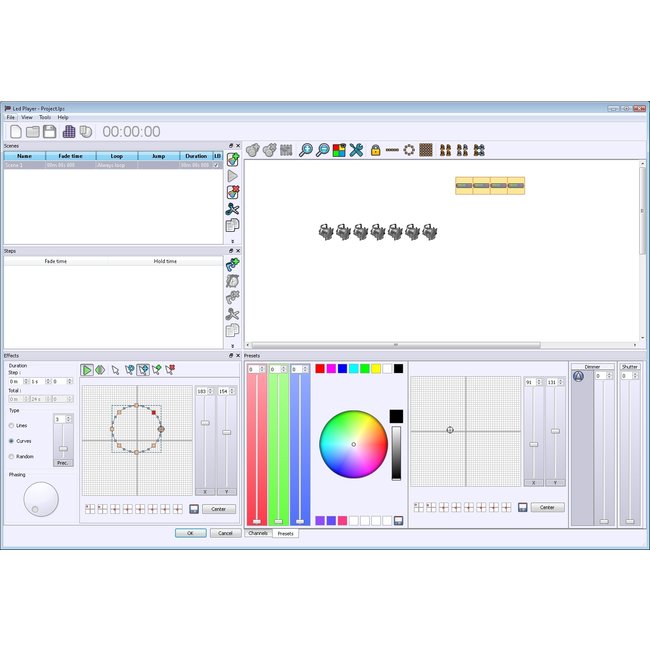

Works with the Chromateq Led Player software. (included)

All the necessary programs can be created via computer and stored into the interface. Once this is done, you only have to press the buttons to activate your programs.

Standalone functions:

Direct access via the trigger buttons for: Scene, Page, Color, Speed , Dimmer

Multiple Zone control: 5 programs can run simultaneously !

8 trigger buttons to recall max. 80 programmed scenes (8 buttons x 10 pages)

Direct access to 8 custom colors (or scroll 100 preprogrammed colors via the up & down buttons)

Speed and dimmer adjustment for each scene

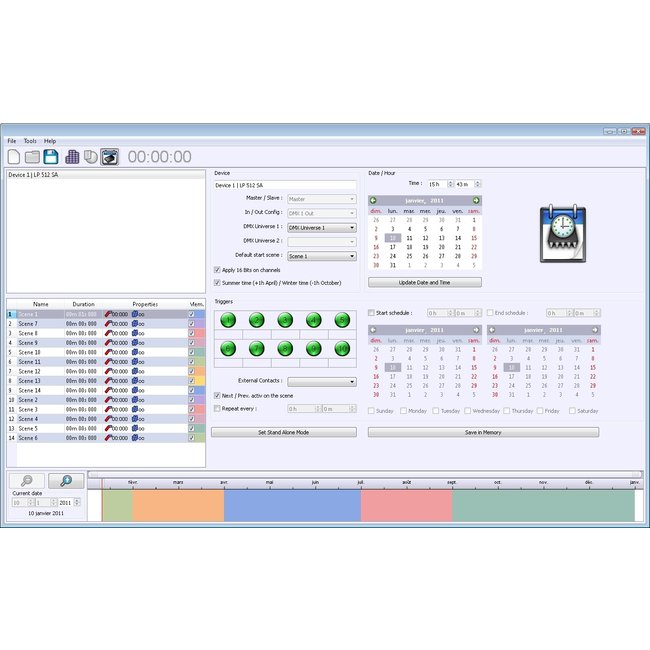

Automatic Real Time Clock triggering for different scenes (day, week, month, year)

Automatic scene recovery when the if the power was accidentally cut off

External Triggering up to 31 contacts (mutiplexed)

Master/Slave mode for up to 32 interfaces connected together

USB cable included

An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)

For more information about the software: www.chromateq.com
